Software
Free Open-Source Software (FOSS) download
The following software, which is licensed under
GNU General Public License
(version 3 or later), can be freely downloaded by anyone. Most of this software is part of our "ecosystem" for open source control and monitoring, for example of hybrid systems. To unpack compressed files, see
7-zip.org
. You are welcome to contact TEROC if you have feedback, would like to buy the suitable hardware preloaded with software or need consulting services etc. Often a later version is available for our clients.
House Unplugged
Control and monitoring software for a self-sufficient house, equipped with
Ferroamp
power electronics, DALI lighting control, EnOcean sensors,
Emoncms
and much more.
Download House Unplugged version 1.1, 2019-07-06
HG1x series – Hybrid Genset controller type 1x
Used with a
Wago
PLC to control a genset in a hybrid system, Can interface TBS e-xpert 501 or
Pro/Pro-hv
battery monitor and genset for example with
Bernini
Be-One controller. With HG12, the new controller 750-862 is used and additional functionality is available.
Download HG11 version 1.3 (for 750-819), 2020-09-10
Download HG12 version 2.0.1 (for 750-862), 2021-01
HG2x series – Hybrid Genset controller type 2x
Used with a
Wago
PLC for redundant control of a second genset in a hybrid system using LON communication (together with HG11).
Download HG21 version 1.1 (for 750-819), 2020-09-10

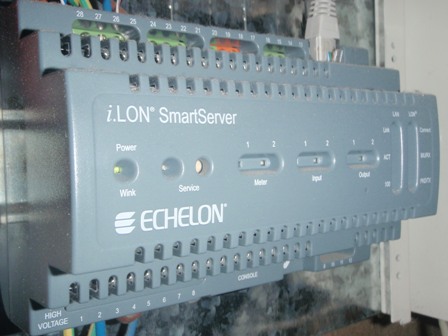

i.LON SmartServer FPMs
Freely Programmable Modules (FPMs) for
i.LON SmartServer FT/PL
. LC1 is an application for load control and SC1 is a driver for communicating with
Studer Xtender
. We have also developed a FPM for SMA Windy Boy.
Download LC1 version 0.6, 2020-11-25
Download SC1 version 1.3, 2019-10-29
IDFC – the i.LON Data File Converter
For automatic conversion of csv files from
i.LON 100 / SmartServer / Fast Data Log Transfer
to the TOA5 format, which can be read e.g. by
VDV
. The included executable will run on almost all Windows versions and can also be compiled for other platforms using
Lazarus
.
Download IDFC version 1.7, 2017-03-16
SWINT
–
Small Wind Turbine controller software
Minimalistic control system that can be used for
JBA "open source" turbines
. Runs on Wago PLC (CoDeSys 2.3).
Download SWINT1 version 1.0, 2024-07-21

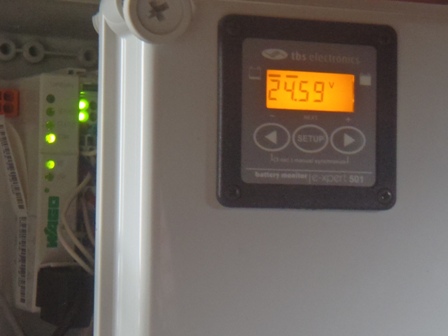

TBM – Thor Battery Monitor
Software written mainly in Python 3 for monitoring of battery bank, by using
Yoctopuce
USB devices.
Download TBM version 1.00, 2018-12-08
Tedalo – converts data from Keller GSM-2/ARC-1
GSM-2/ARC-1 loggers
send data by e-mail. Tedalo automatically fetches the e-mail and converts data to a more useful format (TOA5).
Download Tedalo version 1.9.0, 2020-11
TL – TEROC's Load testing system
Prototype system e.g. for pull test of rock anchors. To use the downloadable program you need LabView and measurement hardware, which is described in the enclosed instructions in Swedish.
Download TL version 1.4
